Price:Negotiable
Brand:Light Country
Quantity:10000

Send Inquiry

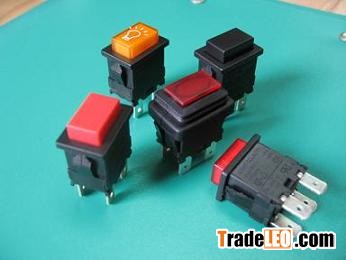

Panel cut out: 13.1mm*19.1mm
Switch Function: SPST, DPST. with lamp and momentary function are available.
UL: 15A 250V/125VAC
VDE (ENEC): 10(4)A250V AC
CQC: 10(4)A250V AC
Safety Approvals: UL, CUL, CQC

1)Mechanical life endurance: 30000 cycles,
2)Electrical life endurance: 10000 cycles,
3)Contact resistance: <20mO
4)Insulation resistance: >1000MO (500V DC between open contacts),
5)Dielectric strength: >1500V / minutes,
6)Ambient temperature: -10°C~+85 °C,
7)Storage temperature: -10°C~+85 °C,
8)Atmospheric humidity: Max.85%,
9)Actuating force: 5~8N (dependent on different switch functions),
10)Flammability: UL94 V-0,
11)Material of housing: PA66,
12)Material of rocker: PC/PA66,
13)Contacts: Silver alloy,
14)Terminal: Brass (Silver Plated),
15)Temperature rise at the terminal Max 30°C, (UL1054),
16)Solder ability of terminal: Max 350°C, 3s (no pressure may be Placed on the terminals when soldering by hand).
