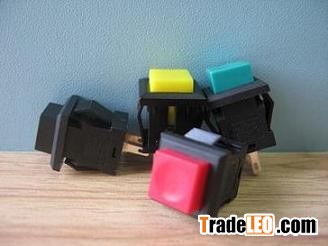

Panel cut out: 11.1mm*12.5mm Switch Function: SPST, ON OFF . momentary function are available.
UL: 1A250V AC&3A 125V AC
VDE (ENEC): 1A250VAC
Safety Approvals: UL, CUL, VDE, ENEC, CQC
(1)Mechanical life endurance: 30000 cycles,
(2)Electrical life endurance: 10000 cycles,
(3)Contact resistance: <20mO
(4)Insulation resistance: >1000MO (500V DC between open contacts),
(5)Dielectric strength: >1500V / minutes,
(6)Ambient temperature: -10°C~+85 °C,
(7)Storage temperature: -10°C~+85 °C,
(8)Atmospheric humidity: Max.85%,
(9)Actuating force: 5~8N (dependent on different switch functions),
(10)Flammability: UL94 V-2,
(11)Material of housing: PA66,
(12)Material of rocker: PC/PA66,
(13)Contacts: Silver alloy,
(14)Terminal: Brass (Silver Plated),
(15)Temperature rise at the terminal Max 30°C, (UL1054),
(16)Solder ability of terminal: Max 350°C, 3s (no pressure may be Placed on the terminals when soldering by hand).
