Brand:wiscon
Send Inquiry
Features:The capacitor takes heavy-edge metallized, AI/Zn pp film or web-like fuse metallized pp film as dieledtrie,its components are assembled in flame-retardant ABS or PBT ey lindrical crust,impregnadted with flame-retatdant epoxy resin, it has high reliability and stablity.
General description:
Broadly applied to running of single-phase AC motors at 50Hz(60Hz)frequency for washedrs and high efficiency compressors of refrigerators etc.

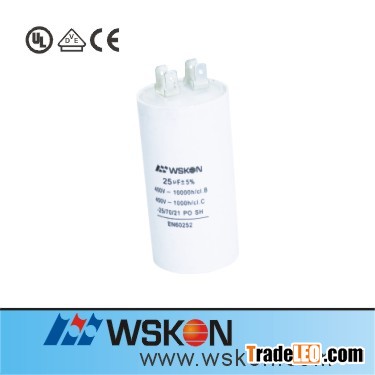

Type Polypropylene Film Capacitor
Application AC / Motor
Package Type Surface Mount
Capacitance 3~10+5.5uF
Rated Voltage 370~450VAC
color white
Technical parameter:
Standard: GB3667-1997,same as IEC60252:1993
Climate type :40/70/21,40/85/21
Capacitance tolerance: 5%
Dielectric dissipation factor :tg&<0.002(50Hz~100Hz)
Life expectancy :3000h(class C) or 10000h(Class B).
