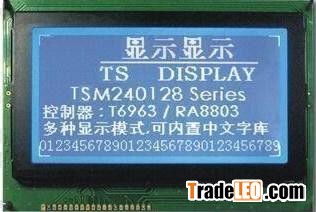

Key Specifications/Special Features:Display size: 240 x 128
Structure: COB with metal frame
LCD display mode: STN-blue, negative, transmissive
Viewing angle: 6 o'clock
Driving method: 1/128 duty, 1/12 bias
Backlight: white LED backlight
Control/driver IC: T6963/RA8803
Outline: 144.0 x 104.0 x 14.6mm (maximum)
Viewing area: 114.0 x 64.0mm
Active area: 107.95 x 57.55mm
Dot pitch: 0.45 x 0.45mm
Dot size: 0.40 x 0.40mm
