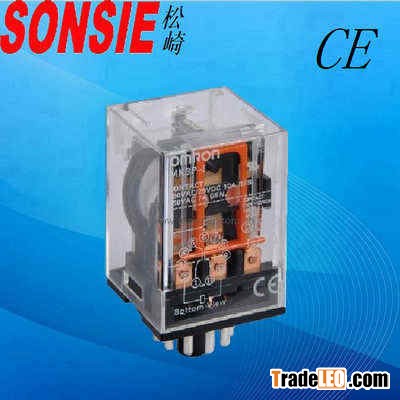

SPECIFICATIONS&CHARACTERISTICS:Type MK2P MK3P
Rated operation voltage
DC:6V/12V/24V/48V/110V AC:12V/24V/36V/50V/110V/220V/380V
Operating voltage rang
DC:80%-110% AC: 80%-110%
Rated frequency AC:50-60HZ
Rated power consumption
about AC:2.7VA DC:1.5W
Rated control capacity
DC:10A 30VDC AC:10A 250VAC P.F=1
Contact material: Ag alloy
Reset time: =25ms
life Mechanical =1000000 times (18000 Ops/h)
Electrical =100000 times (18000 Ops/h)
Output arrangement
Out 2 form C Out 4 form C
Ambient temperature -25°C to +50°C
Ambient humidity Max.85%RH
Weigh Approx75g Approx75g
