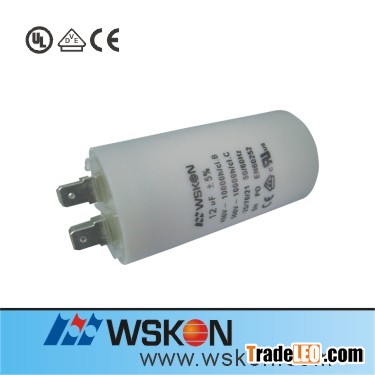

1.General description:Broadly applied to running of single-phase AC motors at 50Hz(60Hz)frequency for washedrs and high efficiency compressors of refrigerators etc.
2.Features:
The capacitor takes heavy-edge metallized, AI/Zn pp film or web-like fuse metallized pp film as dieledtrie, its components are assembled in flame-retardant ABS or PBT ey lindrical crust, impregnated with flame-retatdant epoxy resin,It has high reliability and stability.
3.Technical parameter
Standard:GB3667-1997,same as IEC60252:193
Climate type:40/70/21, 40/85/21
Capacitance tolerance: ±5%
Dielectric dissipation factor: tg&=0.002(50Hz~100Hz)
Life expectancy:3000h(ClassC)or10000h(ClassB)
4.Service condition
Altitude:=2000m
Residual voltage in application:Less than 10% of rated voltage
Allowed maximum voltage:Less than 1.1 times of rated voltage
Permissible maximum current:Less than 1.3 times of rated current
