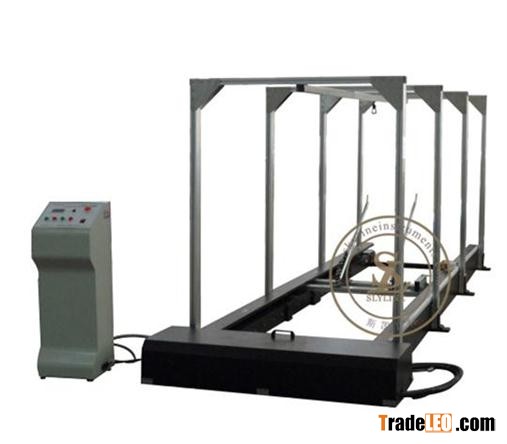

2m/s Tester Product Information
This instrument is mainly used for test the proformance of rides at the speed of toys 2m / s to strike 50x50mm obstruct. The machine simulation children riding tricycle operation state, put on the load on the sample and use 2 m/s speed to strike a piece of 50 x50mm obstacles block.After testing to check sample structure and performance if are in good condition or not
Technical Specification
Sample ride toy for child
Sample quantity 1/time
Test speed 2±0.2m/s
Load weight 25Kg/50Kg
Obstruct 50mmx50mm
Test passage width 90cm
Dimension (WxDxH) main machine:153x450x156cm controller:36x32x100cm
Weight about 650Kg
Power supply 1? AC 380V 50Hz
Testing Standards
EN-71 ISO 8124-1
Load Weight 25Kg/50Kg
