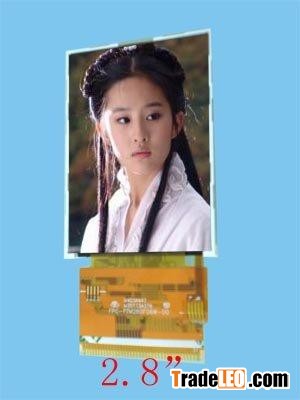

2.8 inch TFT LCD HX8347D Driver IC,No Icon
Digital tft screen,high clear
With touch screen
Backlight: 4-parallel white LED
Size: 2.8"diagonal
Controller: HX8347D
Dot Matrix: 240RGB x 320(QVGA)
Part No.: AT280H8347
Display Format: 240RGB x 320(QVGA)
Outline Size: 50.0 *69.2 mm
Viewing Area: 43.2 * 57.6 mm
LCD Type: TFT Transmissive with Touch Screen ,No icon for Mobile Phone
Controller: HX8347D
Drive voltage: 2.5~3.3V
Connector: FPC
Viewing angle: 12:00
Operating Temperature: -20 C° to +70 C°
Storage temp: -30 C° to +80 C°
Backlight: 4 Chip LEDs, Parallel connection
Touch Panel is optional.
