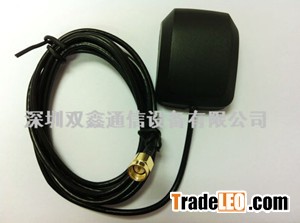

This type of antenna with beautiful appearance, convenient installation, receiving effect is good, and the price is reasonable, welcome to choose and buy!Size 48*37*15
Mounting Magnetic sticking
Weight <110g
Connector SMA
Housing Black
Cable RG174 3meters
Working conditions
Temperature:-40?~+85?
Humidity: 95?~100?
Storage conditions
Temperature:-40?~+85?
Humidity: 95?~100?
Specifications
Range of Receiving Frequency(MHz)1575.42±1.1
Band Width(MHz)=10
V.S.W.R(in Center Frequency) =1.5
Gain (Zenith)(dBi typ)(with 70mmSquare GND plane) 4.5
Axial Ratio(with 70mm Square GND plan) 3.0dB
Polarization Right-Handed Circular
Impedance(O) 50
FrequencyTemperature Coefficient (ppm/?) 0±10
Amplifier characteristics
Frequency range 1575.42MHz
amplifier gain 28dB ~36dB
V.S.W.R <2.0
Noise coefficient =1.5dB
Dc voltage 2.9~3.6v
Dc current 5MA,10MA,MAX
