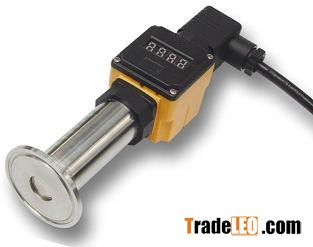

MB340 flush diaphragm pressure transducer has an integrated stainless steel and flush diaphragm construction. Designed for food,medical,pharmaceutical industry etc.The inlaying circuits transform millivolt signal into standard voltage, current and frequency signal. It can connect to computers and controlling instruments directly.Widely used in food,medical,wine making,pharmaceutical industry etc.Measuring Medium The gas,vapor or liquid which is compatible with construction material and Viton
Pressure range -100kPa~0~2kPa…100MPa
Pressure Type Gauge pressure, Absolute pressure
Accuracy ±0.5%FS(typical), ±0.25%FS
Long-term stability ±0.2%FS/Y
Power supply 12VDC~36VDC
Output signal 4~20mA, 0~5V,0~10V,1~5V etc.
Ambient temp -40~85?
Compensated temp. 0~80?
Medium temp. -10~125?
