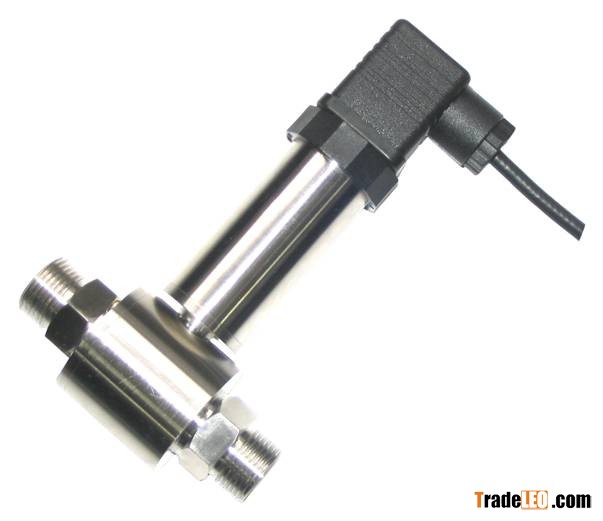

MB510 differential pressure transmitter adopts OEM piezoresistive differential pressure sensor. Stainless steel housing decides its strong anti-corrosion ability. Two M20*1.5(or customized connector dimention) pressure connectors can be installed on the measuring tube directly(or get a connection through a connecting tube).Medium Measuring The gas ,vapor,liquid which is compatible with construction material and Viton
Pressure range 0~35MPa
Pressure reference Differential pressure
Power supply 5VDC~36VDC
Output signal mV,4~20mA, 1~5V
Accuracy ±0.5%FS(typical), ±0.25%FS
Long-term stability ±0.2%FS/Y
Temp. drift ±0.03%FS/?
Medium temp. -40~45?
Ambient temp -40~85?
Compensated temp. 0~80?
Overpressure 200%FS
