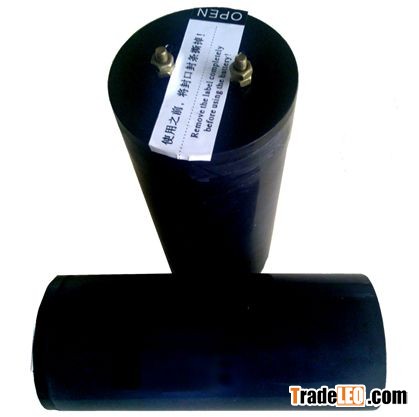

Characteristics:Cell type: 1.5V/100Ah
Rated voltage: 1.5V
Rated capacity: 100Ah (at 23 ±3°C, continually discharge at 30O resistance to cut-off voltage 0.9V)
Operating temperature: -20 to 60°C
Storage temperature: 25 ±15°C
Dimensions: diameter F65.00 to 0.3mm
Height: 1,610 to 0.2mm (maximum)
Weight: 0.6kg
Configuration and component: MnO2, positive is activated carbon, negative zinc, organic electrolyte and plastic outsell
Temperature:
Temperature: 25 ±15°C
Relative humidity: 65 ± 20% RH (unless otherwise specified)
Measure instrument:
Dimensional measurement: caliper has accuracy of ±0.02mm
Voltmeter: This has an accuracy of ±0.2% and impedance of above 10MO
Exactitude resistance: relative error less than 0.5%
Resistance box: relative error less than 0.5%
Constant temperature oven: absolute error less than ±2°C
Rated voltage: 1.5V
Rated capacity: 100Ah
Polarity: +
