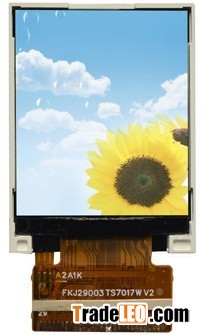

TS7324X(2.4inch )Key specification
Display type: 2.4 inches TFT
Display mode: Transmissive
Resolution: 240x RGB x 320 pixels
Number of colors: 262K
Outline dimensions: 42.72W x 59.45H x 2.6T(mm)
Active Area: 36.72W*48.96H(mm)
Interface: MCU 16/18bit
Driver IC: HX8347G
Backlight: White LED Backlight
Operating Voltage:2.8V
Viewing direction : 6 o'clock
Operating Temperatures: -20'c to 70'c
Storage Temperatures:-30'c to 80'c
Compliant with RoHS Directive
