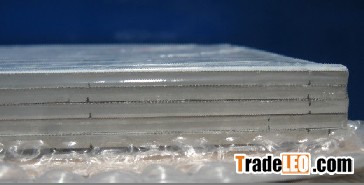

Double sided IMS PCB

2017-01-12 08:16 Views:82

Price:Negotiable

1. IMS (Insulated metal Substrate)PCB
2. Aluminum backed 2-layer, 510*155mm=10PCB
3. Thermal conductivity: 2.0W/mk.
4. 2 oz each layer, 3.3mm thick
5. Black solder mask/ no text
6. Lead free HASL
7. Plated through hole (PTH)
8. V-cut, 2.0mm slots
9. layer stack up
------copper 70µm (layer 1)
------dielectric thick 75µm
------copper 70µm (layer 2)
------dielectric thick 75µm
------aluminum base 3.0mm
