Price:Negotiable

Send Inquiry

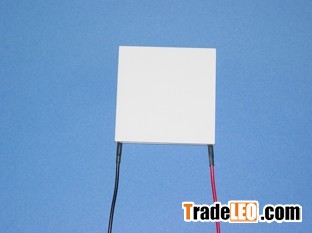

TES1-03102 Thermoelectric Cooling Modules
Couples: 31
Imax:2A
Umax:3.75V
Qcmax:4.3W
?Tmax:69?
Dimensions:15*15*3.8mm


TEC1-07104 Thermoelectric Cooling Modules
Couples: 71
Imax:4A;
Umax:8.5V
Qcmax:20.1W
?Tmax:69?
Dimensions:30*30*4.5mm


TEC1-12706 Thermoelectric Cooling Modules
Couples: 127
Imax:6A
Umax:15.4V
Qcmax:53.3W
?Tmax:69?
Dimensions:40*40*3.8mm

1.The operating temperature: 125?, 150?, 200?.
2.The length of lead wire could be fixed by clients, the common length is 150mm.
3.The sealing of TE modules: Unsealing, Silicon, Epoxy, the normal sealing is silicon gel.
4.Both sides of TE modules can be Lapped with high accuracy.

TEC1-12708 Thermoelectric Cooling Modules
Couples:127
Imax:8A
Umax:15.4V
Qcmax:71.1W
?Tmax:69?
Dimensions:40*40*3.4mm
