Brand:Ease
Quantity:50000
Send Inquiry

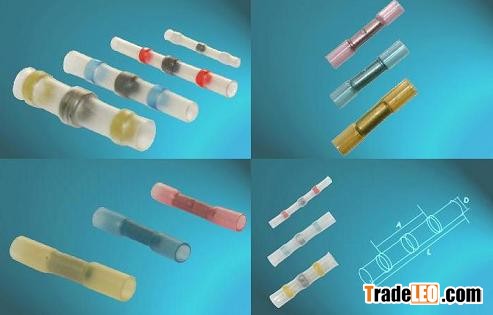

MATERIAL: (INSULATION) HEAT-SHRINKABLE POLYOLEFIN, (SOLDER) LEAD-FREE TIN, (RINGS) MELTABLE THERMALLY STABILIZED THERMOPLASTIC.SOLDER MELTING TEMP: 138?, FLUX ACTIVATED ROSIN
WORK TEMP: -55? to +125?
SHRINKING TEMP: >200?
DIELECTRIC STRENGTH: 2kV
PROTECTION TYPE: IP 67
EASE CODE: TM-HS-SB-0.5 (Size: 1.7D *15.2A * 26L, WIRE RANGE: 0.1-0.5mm2, Color: White);
TM-HS-SB-1.5 (Size: 2.7D *15.2A * 40.0L, WIRE RANGE: 0.5-1.5mm2, Color: Red);
TM-HS-SB-2.5 (Size: 1.7D *15.2A * 40.0L, WIRE RANGE: 1.5-2.5mm2, Color: Blue);
TM-HS-SB-6.0 (Size: 1.7D *15.2A * 40.0L, WIRE RANGE: 2.5-6.0mm2, Color: Yellow);
