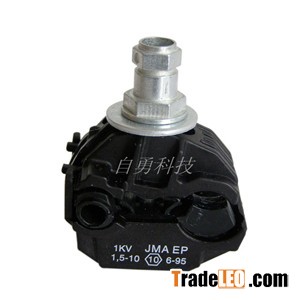

Specifications: Main:6-95mm2, Branch:1.5-10mm2, Piercing depth:=3mm, Rating current(A):70, Bolt number:1, Exterior dimension (mm):27*41*60, Weight:52g, Package:300Pcs/CTN
Features:
(1) Self-seam frame, water proof, and anti-corrosion.
(2) Moment nut, piercing pressure is constant.
(3) Simple installation. No need to strip the cable coat.
(4) Adopted special connecting tablet, apply to joint of Cu(Ai) and Cu(Ai) or Cu and Ai
(5) Small electric connection resistance, impulse current can be up to 15ka.
(6) Resistance to illumination and environmental aging, the insulation strength can up to 6kV.
(7) Apply to connection with the same (different) diameter, wide connection scope (0.75mm2-400mm2)
