Resistance: 300micro ohm
Resistance value tolerance: 10%

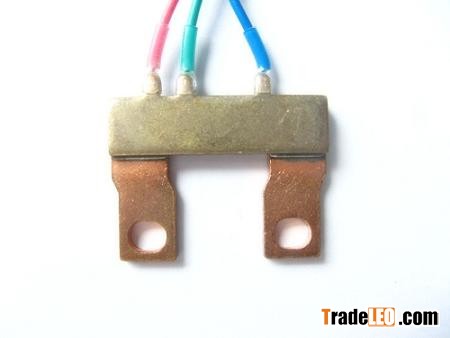

Shunt type: The shunt should be moutable type with holes for screw fixing
Material: Manganin+ red copper
Welding mode: Silver paste welding
Rated current: 60A
Termination: Integrated lead wire are available.
Temperature: Independent from temperature variation with low TCR value.
Power Loss 3VA
Aging: 24 hours/120º C
Customized designs are available against customers'drawings/samples
(Shunt, silver paste shunt)
