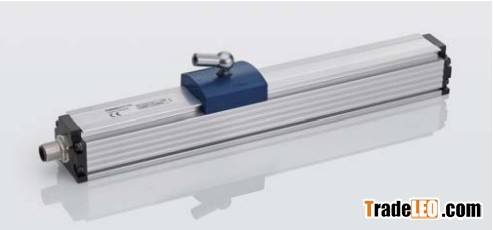

Series TP1 with Start-Stop-, SSI-,DyMoS interface


NOVOSTRICTIVE non-contacting magnetostrictive measurement principle
non-contact position detection
wear-free, unlimited mechanical life span
me-asuring stroke lengths up to 4500 mm



Special features
absolute transducer in robust profile design
NOVOSTRICTIVE non-contacting magnetostrictive measurement principle
non-contact position detection
wear-free, unlimited mechanical life span
Start-Stop pulse interface with normed speed of opera-tion 2800 m/s
Synchronous serial interface
DyMoS?-interface with data transfer monitoring
excellent linearity up to 10 µm
resolution up to 0.001 mm regardless of stroke length
low temperature coefficient <15 ppm/K
insensitive to shock and vibration
cable or connector version available
protection class IP67 / IP68
Model No.:
For example:
TP1 0800 101 111 102
TP1 0100 101 423 102
TP1 1500 101 411 102
