Special features

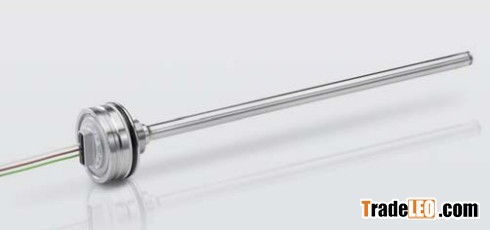

rod style transducer
for integration in pneumatic and hydraulic cylinders
touchless magnetostrictive measuring process
non-contact guiding with ring-shaped position marker
unlimited mechanical life
no velocity limit for position marker
absolute output voltage or current
outstanding accuracy per-formance up to 0,04 %
repeatability 0,01 % regard-less of stroke length
operating pressure up to 350 bar, peaks up to 530 bar
wide range of supply voltage
EMC for mobile applications
immunity against HF fields up to 200 V/m
screw flange M18x1,5 or plug-in flange ? 48 mm
other flanges on request
optionally plug, cable or lead wire connection
Model No:
For example:
TIM 0500 301 851 251
