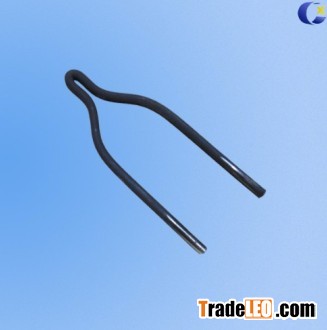

 IEC60695-2-10 Glow Wire Loop

Thermo resistance, spare part set of Glow Wire Apparatus Acc IEC60695-2-10. Thermo resistance loop is a wire loop that is defined at a temperature and is pressed against a stan­dardized test platelet made of plastic (or other materials) for a prescribed period of time under precise test condi­tions.

The test examines whether the test specimen ignites, whether the flames propagate and whether burning material drips.

Characteristics of Resistance:

Material: Nickel/Chromium(80/20) Alloy
Diameter of wire: 4mm Tolerance 0.04mm
Length: 80mm
Width between terminals: 36mm
Thermocouple fit: 0.55hole
Reference: IEC60695-2-10 Figure 1
