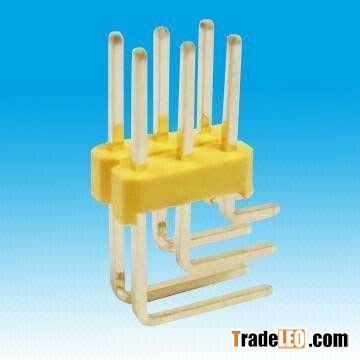

Features:Pitch: 2.54mm (1.0, 1.27, 2.0 and 3.94mm is available)
RA or straight
Number of positions: 3 to 99, tri-row
Materials:
Contact: brass or copper alloy
Insulator: PBT + 30GF, yellow color, UL94V-0 rated (nylon 6T, 9T and LCP are available)
Insulator height: 2.5mm (1.5, 2.0, 4.3, 3.0 and 7.0 are also available)
Positioning pegs: with or not, decided by customers (only for straight type)
Electronic performance:
Current rating: 3A
Contact resistance: 20mO; (maximum)
Insulation resistance: 1,000mO; (minimum)
Withstand voltage: 1,000V AC/minute
Operation temperature: -40 to +105
Contact plating: Au or Sn over 50u; Ni
Certificates:
Compliant with the RoHS Directive (2002/95/EC)
Sony green partner
No Pb production (Pb <100ppm)
Advantages:
Samsung, TCL and media-regular vendor
Environment-conscious products
OEM and ODM orders are welcomed
Packaging: PVC bags, then put into strong carton
