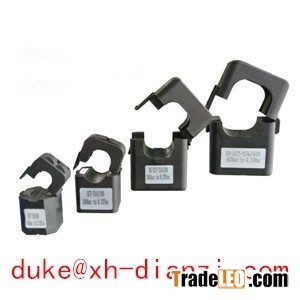

Split Core Current Transformer Manufacturers: Features:
Small size, low cost
High secondary turns
Secure locking hinge
Features:
Maximum continuous primary current 5A to 5000AAC
Current Ratio: 3000: 1
Output: 0.333V, mV or mA.
Accuracy: ± 1% from 5% to 120% of rated current
Insulation Voltage: 600VAC
Maximum Primary Voltage: 5000VAC(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15C to 60C.
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 0.34 mm2(22AWG)
CE recognized, and RoHS compliant
Output and leads can be customized
Model I.D. Ratio Rated Amps Accuracy
XH-SCT-T06 6mm 1000:1 1, 5,10, 15, 20, 0.5 , 1.0
XH-SCT-T10 10mm 3000:1 5, 15, 30, 50, 75,80 0.5 , 1.0
XH-SCT-T16 16mm 3000:1 50, 70, 100, 120 0.5 , 1.0
XH-SCT-T24 24mm 3000:1 100, 150, 200, 300 0.5 , 1.0
XH-SCT-T36 36mm 3000:1 300, 400, 500, 600 0.5 , 1.0
