Brand:Jiangyin spark
Quantity:100000
Send Inquiry
Rated secondary current: 5 or 1A AC Rated load: 1, 2.5, 5.0, 10 and 30VA
Accuracy: 0.5, 1.0 and 3.0 class
Frequency range: 50/60Hz
Operating temperature: -15 to 60° C

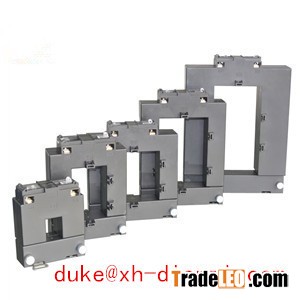

Split core design, safer, easy to install and portable
Accessories: Supplied with feet for base mounting if required
spec
model Outside dimension Though hole dimension Install dimension
W H D a e M N
XH-30× 20 90 114 40 22 32 50 49.5
XH-80× 50 114 159 36 52 82 78 49.5
XH-80× 80 144 159 36 82 82 108 49.5
XH-120× 80 144 199 36 82 122 108 49.5
XH-160× 80 184 254 52 82 162 120 49.5
