Brand:HCT
Quantity:50
Send Inquiry

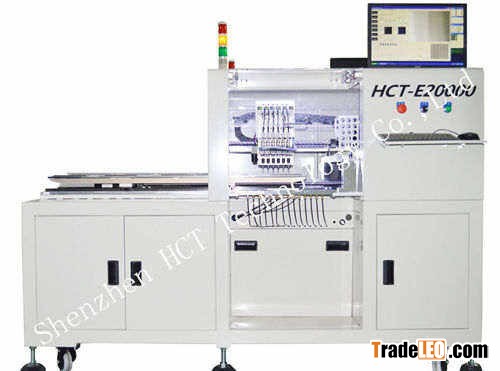

Model#: HCT-E20000 Outline Dimensions: L*W*H 2000*970*1350mm
Total Weight: Approx 850kg
PCB Size Max:1200mm X310mm
PCB Thickness: 0.5-3.0mm
PCB Convey Direction: From Left to right
Software: Windows XP
Display: LCD Monitor
Input Device: Mouse & Keyboard
No. of Camera: 7 Sets
Positioning Way: MARK by Vision Alignment System
SMD Components: 0402 - 5050 - 7474 (Max Height 6mm)
No. of Mounting Head: 6 Nozzles
No. of Feeders: 14 Units (12mm Feeders)
Accuracy: ±0.1mm (chip & IC)
Kinetic Precision: ±0.01mm
Speed: 28000CPH (maximum)
Power Supply: Single phase, AC 220V (±10%), 50Hz
Maximum Power: 1.9 KW
Compressed Air: 0.7MPA
