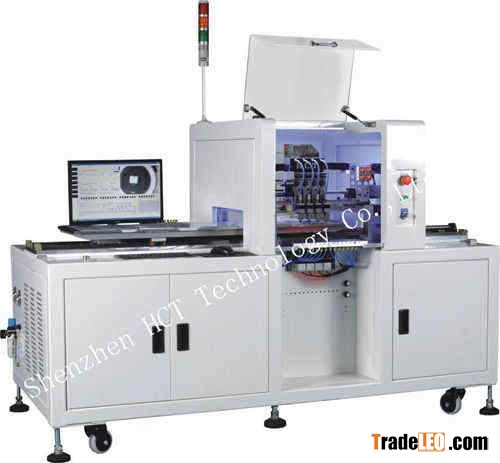

Model#: HCT-E15000 Outline Dimensions: L*W*H 2000*920*1250mm
Total Weight: Approx 650kg
PCB Size Max:1200mm X310mm
PCB Thickness: 0.5-3.0mm
PCB Convey Direction: From Left to right
Software: Windows XP
Display: LCD Monitor
Input Device: Mouse & Keyboard
No. of Camera: 5 Sets
Mark Point Recognition Gray scale & Multi - View Shape Recognition & Edge Detection
Positioning Way: MARK by Vision Alignment System
SMD Components: 0402 - 5050 - 7474 (Max Height 6mm)
No. of Mounting Head: 4 Nozzles
No. of Feeders: 10 Units (8mm Feeders)
Accuracy: ±0.1mm (chip & IC)
Kinetic Precision: ±0.01mm
Speed: 22000CPH (maximum)
Power Supply: Single phase, AC 220V (±10%), 50Hz
Maximum Power: 2.0 KW
Compressed Air: 0.7MPA
