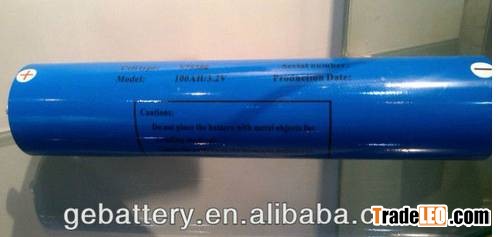

The unique cylindrical large capacity super power 3.2V 100Ah 75380S LiFePO4 battery Specification:
Nominal capacity
100Ah
Nominal Voltage
3.2V
Standard charge current
0.2C cc charge to 3.65V.
3.65Vcharge till charge current to 0.05C
Max charge current
1C(100A)
Max continual discharge current
3C(300A)
Pulse discharge current
8C(800A)
Charge voltage
3.65V
Discharge cut off voltage
2V
Cycle life
2000times(DOD 80%)
Internal resistance
=1mO
Weight Energy density
120 Wh/Kg 0.2CDC
Volume Energy density
200 Wh/L 0.2CDC
Weight
Approx 2800Gr
Size
F75*H380mm
Operating temperature
Charge: 0~45°C
Discharge : -20~55°C
Storage temperature
Less than 1 year: 0~25°C
Less than 3 month :-10~45°C
PS:We can customized the the large cylindrical model from capacity 10Ah -100Ah .Tell me i you have the specific capacity need on this kinds of battery
