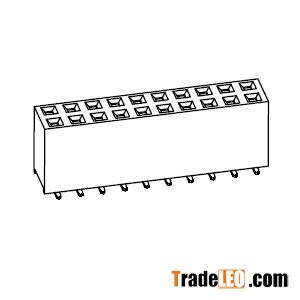

Pitch: 2.54mm Gender: Socket
Number of contacts: 04-80 pin
Mount type: through hole
Number of Rows: Dual row
Elevated: No
Orientation: Straight
Square Pin Diameter: 0.75mm
Insulator colour: Black
Without locating peg
Specification
Current Rating: 3 Amp
Insulator Resistance: 1000 MO min
Contact Resistance: 20 MO max
Dielectric Withstanding: AC 500V
Operating Temp.: -40? to +105?
Contact Material: Copper Alloy
Soldering Process:
PA6T(Standard)
IR Reflow: 260? for 10 seconds
Wave: 230? for 5-10 seconds
Manual Solder: 350? for 3-5 seconds
PBT(OPTION)
Manual Solder: 350? for 3-5 seconds (Not suitable for HI-TEMP process) WAVE:230? for 5-10 seconds
PA9T/LCP(Option)
IR Reflow: 260? for 10 seconds
Wave: 250? for 5-10 seconds
Manual Solder: 350? for 3-5 seconds
