Specifications:Mode Q1

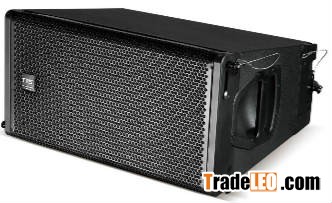

Type high-precision two-way line array speaker
Frequency Range 65Hz - 18KHz ± 10dB 70Hz - 18KHz ± 3dB
Frequency Response -
Power Rated 600W
SPL Continuous: 1200W; Peak: 132dB; Continuous 138dB Peak
Dispersion (Horizontal) ?75°
Dispersion (Vertical) It depends on the quantity of the speakers
LF Drivers 2×300W Continuous; 1200W Peak
HF Drivers 1×90W Continuous
Power Rated LF to HF: 1750KHz 2×10” neodymium LF drivers
Sensitivity LF to HF: 1750KHz 2×10” neodymium LF drivers
Nominal Impedance 8O/driver. 1×3” neodymium compression driver, impedance: 8O
Connectors ±1: LF; ±2: HF
1.5” opening; 2×NL4 Neutrik jack
Dimension (H×W×D) 310mm×580mm×410mm
Weight 26kg
Applications:
Stadiums, Theater, Hall room, Touring, Portable application.
