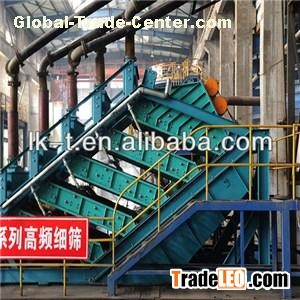

FG Resonate-style Composite-vibrating Screen Series This series of screen,Website:http://www.bjscreens.com, patented product of our company, is applied double degree of freedom resonance principle and designed to utilize a single vibrating resource (vibrating motors) to drive whole screen to generate composite-vibration composed of linear vibration of screen box and mesh vibration stricken by vibrating rod row, and vibration parameters can be controlled through frequency conversion. This series is one of the most advanced equipment in the field of fine materials screening.This screen series is adapted to the fine materials wet classification and dewatering work in beneficiation, coal prepara-tion, nonmetal industry and other industries, According to site requirements, 1 to 5 stacks screen can be designed. Models Parameters List of FG Resonate-style Composite-vibrating Screen Series Model Stacks of screen box Working area (m2) Power （kW） Application FG1021 1 2.10 1.86 Wet classification FG1028 1 2.80 1.86 FG1228 1 3.32 1.86 D3FG1014 3 4.20 3.72 Wet classification D4FG1014 4 5.60 3.72 D5FG1014 5 7.00 3.72 D3FG1014 3 5.76 3.72 Wet classification D4FG1014 4 7.68 3.72 D5FG1014 5 9.6 3.72 D2FG1021 2 4.20 3.72 Wet classification D3FG1021 3 6.30 3.72 D4FG1021 4 8.40 3.72 D5FG1021 5 10.50 3.72 D2FG1224 2 5.76 3.72 Wet classification D3FG1224 3 8.64 3.72 D4FG1224 4 11.52 3.72 D5FG1224 5 14.40 5.20
