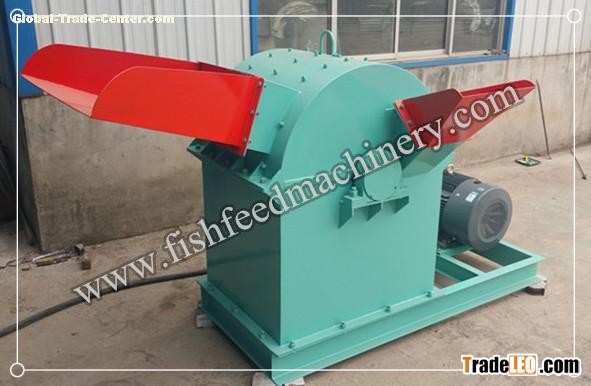

With high grinding efficiency, low energy consumption, simple structure and easy to maintenance, being an ideal feed grinding machine in shrimp and tilapia feed manufacturing process, 9FQ Series Fish Feed Hammer Mill is used to grind fish feed raw materials, such as soybean straw, peanut vines, Ipomoea batatas, and other coarse materials, like branches, peanut hull, sorghum, dried grass etc.

This feed grinding machine is comprised of feed hopper, upper and lower body, rotors, screen pieces, wind turbine, and feed delivery pipe. Storage bags or storage bin could be equipped if needed.

Crushing Process:

Fish feed raw materials - ground in the crushing chamber - screen pieces - wind turbine - collection - pulverized materials

Parameter of Fish Feed Hammer Mill

Model: FY-360

Spindle Speed: 4000r/min

Rotor Working Diameter: 360mm

Hammer Blade Quantity: 16

Mixing Capacity: 150-250kg/h

Power: 5.5-7.5kw

Any interest or need, please feel free to contact info@fishfeedmachinery.com or Skype:fishfeedmachinery
