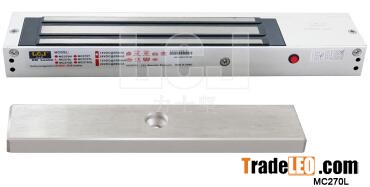

Surface mounted(middle) Voltage: 12V DC / 24V DC ±10% input
Fail Safe,Locked When Energized Work current:500mA / 250mA
No residual magnetism, no mechanical damage, single door Holding force :600 lbs/250kgs
Gross weight: 1.97kg
Lock status signal NO/NC output, LED Indicator
Lock size: L253 X W48 X H26(mm)
Armature plate size: L185 X W38 X H12(mm)
Material: Aluminum alloy, cooper and silicon-steel plate for magnetic lock; soft magnetic alloy for armature plate.
90 degrees open for all kinds of doors with frame
Package: 12pcs/carton
N.W.: 23.64kg
G.W.: 24.14kg
frameless doors or inswing doors can choose accessories
