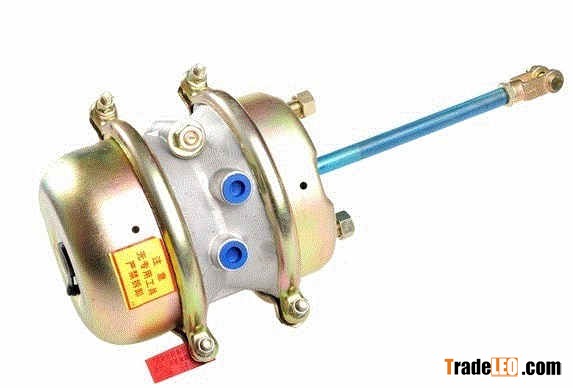

spring brake chamber - Sell

spring brake chamber

2017-01-07 02:31 Views:244

Price:Negotiable

Specifications

brake chamber
T3030DD GOLD
ORIGINAL NO: 9253020020
STROKE: 64MM

brake chamber
T3030DD GOLD

ORIGINAL NO: 9253020020
TYPE:T3030DD
STROKE: 64MM
PORT THREAD: 2-NPT3/8
BOLT THREAD: 5/8-11UNC
BOLT CENTRE:120.7MM
PUSH ROD THREAD: 5/8-18UNC
PUSH ROD LENGTH: 270MM

ORIGINAL NO: 9253020020
TYPE:T3030DD
STROKE: 64MM
PORT THREAD: 2-NPT3/8
BOLT THREAD: M16×1.5
BOLT CENTRE:120.7MM
PUSH ROD THREAD: M16×1.5
PUSH ROD LENGTH: 270M
