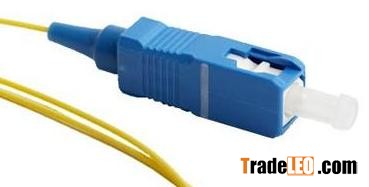

Patch cord or pigtail Description:
Features
*Low insertion loss
*High return loss
*Excellent interchangeability
*High mechanical durability
*Standard: RoHS
Performance Index
Item Single mode Multimode
Optical Fiber Diameter 9/125um 62.5/125um 50/125um
Insertion loss PC = 0.3dB APC = 0.2dB PC = 0.3dB
Return loss PC = 45 dB APC = 60 dB PC = 25 dB
Insert-Pull Test (1000 times) less than 0.3dB
Interchangeability = 0.2 dB
Operating temperature -40°C~+80°C
Tensile strength 15kfg
Applications
*Telecommunication networks, Gigabit Ethernet
*CATV, Video, Multimedia
*Active device termination, Premise installations
*Industrial, Military
Ordering options
*Patch cord or pigtail
*Fiber type:9/125um(SM),50/125um(MM),62.5/125um(MM)
*Endface type: PC, APC,UPC
*Cable number:duplex,simplex
*Cable diameter:0.9mm,2.0mm,3.0mm......
*Cable length: customized
*Cable material: PVC,LSZH,OFNR,OFNP
