Brand:PX
Quantity:1000
Send Inquiry

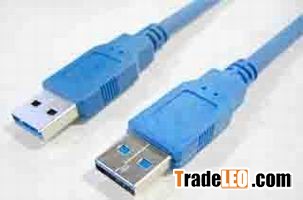

1. The Cable UL2725 30 * 30 + AEB OD: Blue/Black PVC is 5.5 MM, Rev3.0 USB Cable. 2. Plug terminals gold-plated, shell plating nickel, LanJiao.
3. The green PE bag packaging
4. Comply with the ROHS
Electrical:
100% open & short test
Hi-Pot: DC 300V 10ms
Insulation Resistance: 10M OHM /300V Min.
Contact Resistance: 0.01 OHM Max.
Shield up to 65% braid.
Working Temperature: -25oC ~ +85oC
Mechanical:
Over mold: PVC 70Pa UL94V-0 Black
Pre mold: PE Low Density
Contact: Copper Alloy.
Insertion Force: 35 N Max.
Withdraw Force: 10 N Min
